Description

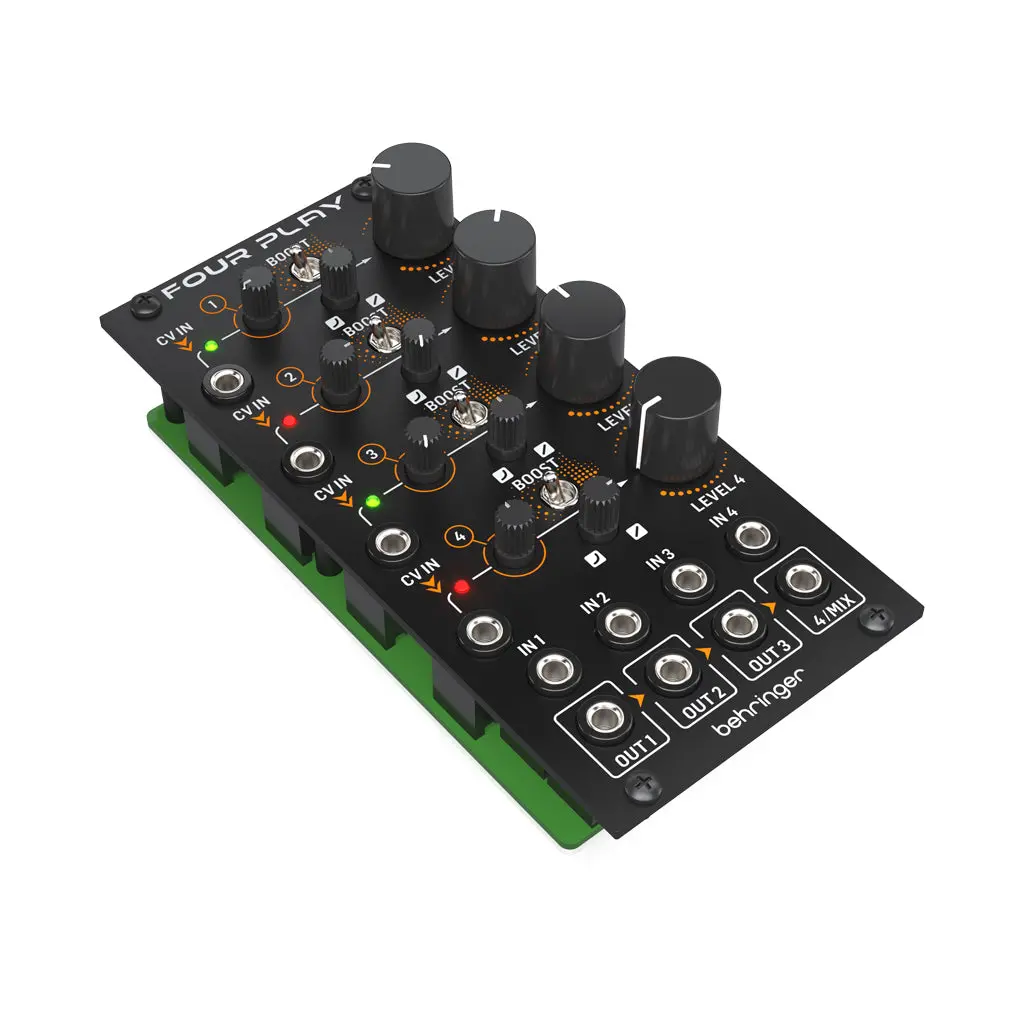

Quad Voltage Controlled Amplifiers and Mixer Module for Eurorack
The first synth modules came out in the 60s and tended to be extremely expensive. The FOUR PLAY is a modern compact and versatile module giving you four independent VCA’s which can also be used as a 4-channel voltage-controlled mixer for amazing flexibility. Modular synths were a landmark development in electronic music and today, it’s about to get better.
Features
- Ultra-low noise quad VCA and mixer module
- Each VCA features manual Level control for independent mixing
- Dedicated CV attenuators with dual LED’s for monitoring of bipolar CV signals
- Adjustable VCA response curve from linear to exponential
- Each CV input is normalled to the adjacent input for cascaded control
- Each output is normalled to the mix input of the adjacent output for cascaded control
- Each VCA features a Boost switch for increased output level (6 dB)
- 16 controls and switches give you real-time access to all important parameters
- Eurorack specs: 12 HP, 100 mA +12V, 100 mA -12V
