Description

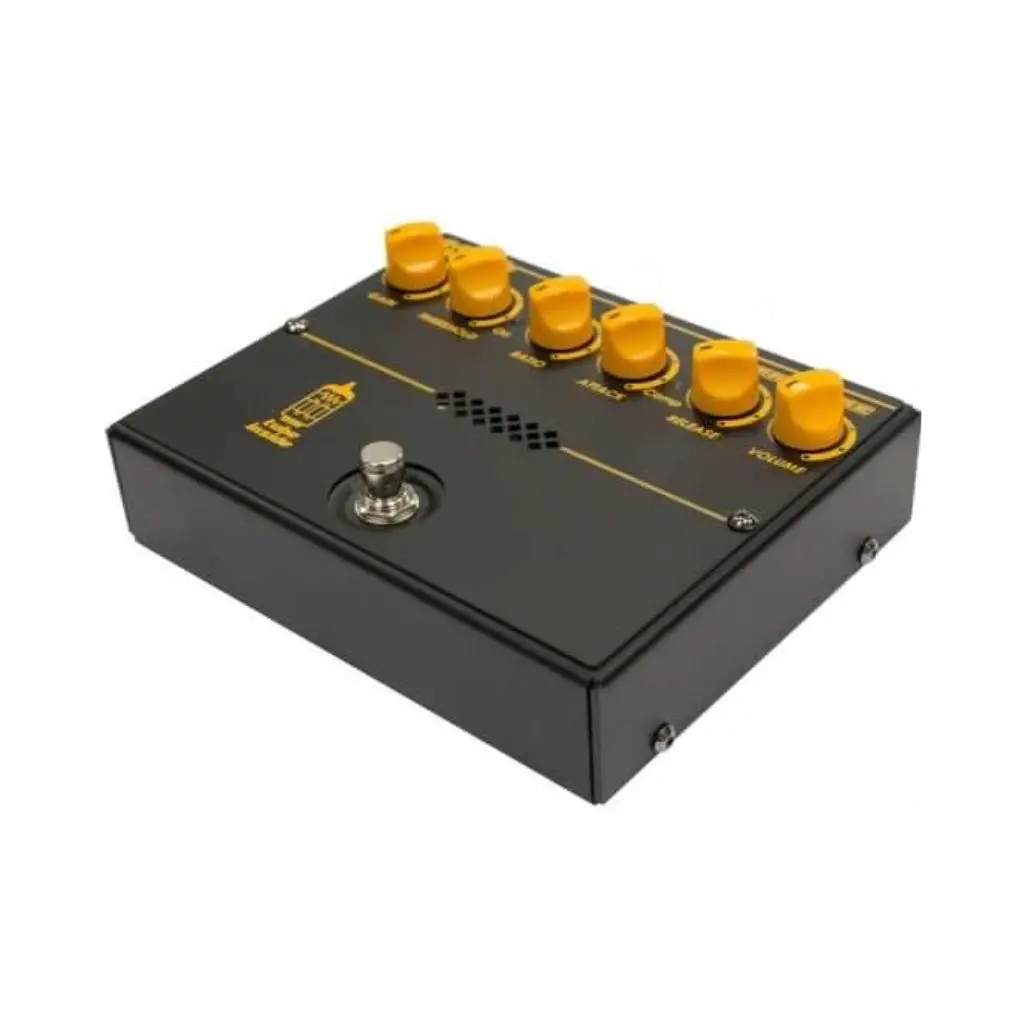

COMPRESSORE is a state-of-the-art compression tool that allows you to control gain, threshold, ratio, attack and release. The pedal also true bypass, which means that when the compressor is ‘off’, your signal goes directly from the input jack to the output jack without any degradation of audio quality.
Specs
CONTROLS
- Gain
- Threshold
- Ratio
- Attack
- Release
- Volume
- On/off Switch
REAR PANEL
- Input Jack
- Output Jack
- Power Jack (Dc 12v)
TECHNICAL SPECS
- Input Impedance: 300 Kohm
- Gain: 0 ÷ +16dB
- Threshold: 30mVp ÷ 1,8 Vp
- Ratio: 1:1 ÷ 1:? (hard limiter)
- Attack: 2 ÷ 50 ms
- Release: 100 ÷ 750 ms
- Output Impedance: 100 ohms
- Power Requirements – DC input: +12VDC / 600mA minimum*
- TUBE: 1x ECC81
- Dimensions: 6.53”x 5.59”x 2.08” / 166 x 142 x 53 mm
- Weight: 1.55 lbs / 700 gr
*12VDC power supply included
